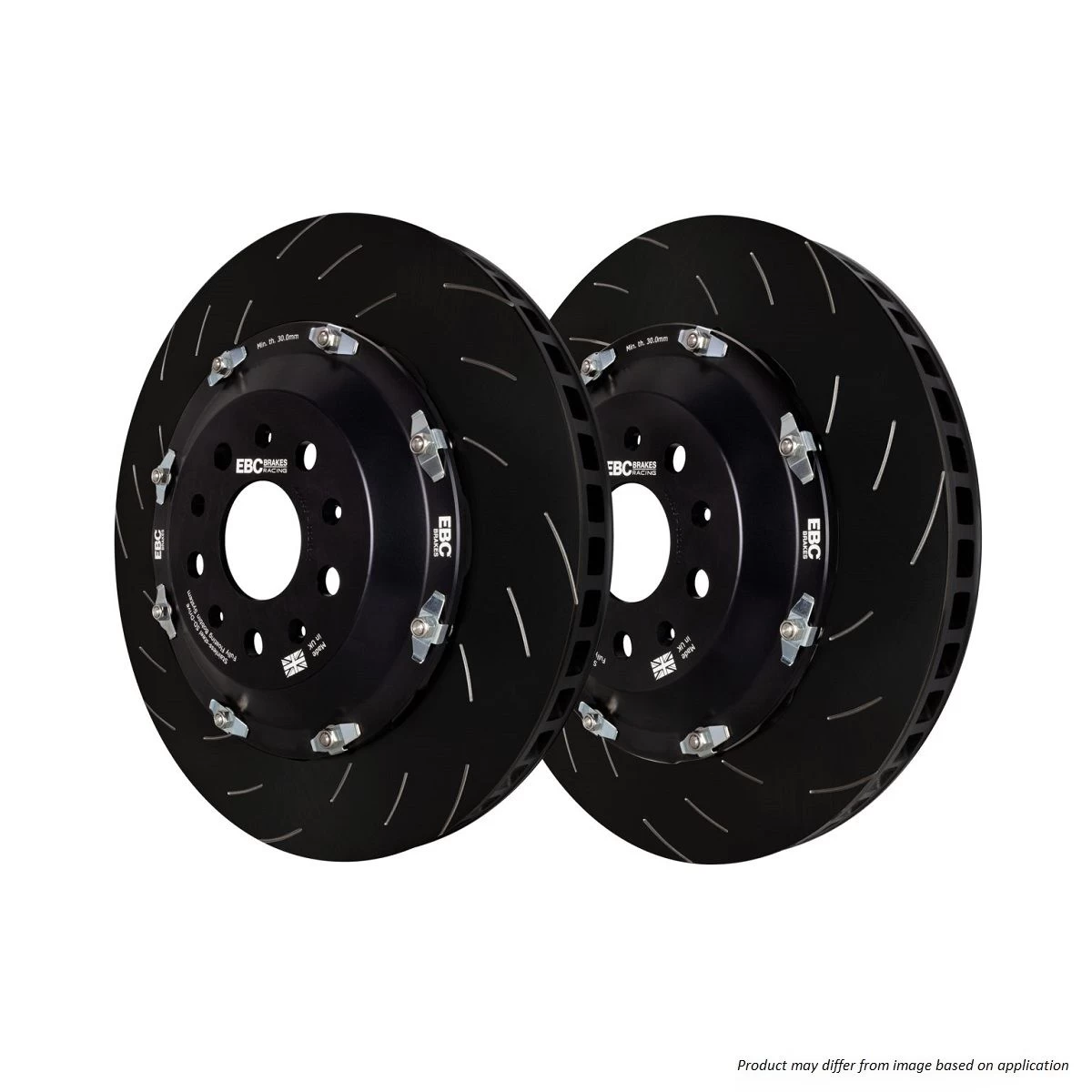

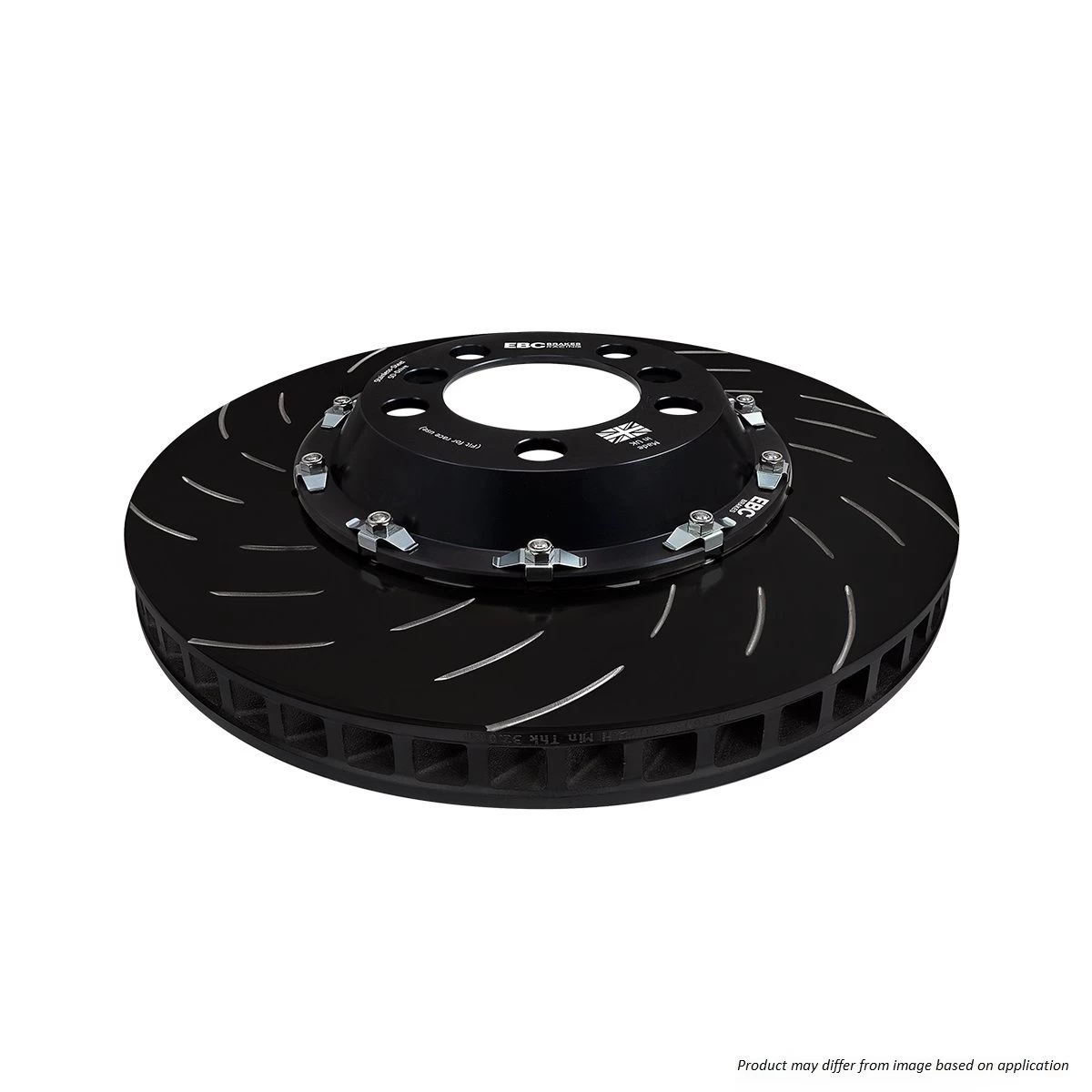

SG2F022 – EBC SG2F 2-Piece Slotted Brake Discs; Front

SG2F022 – EBC SG2F 2-Piece Slotted Brake Discs; Front

EBC’s 2-piece fully floating rotors have been tested to withstand
hundreds of hours the harshest track driving. EBC’s 2-piece rotors offer
a significant weight saving compared to similar sized brake rotors
leads to improvements in acceleration, ‘dive’ under braking, and tyre
road holding. All cast iron rings feature 48 curved vanes and are handed
left and right, ensuring the vanes always rotate in the correct
direction, giving maximum cooling efficiency.

All outer friction rings are cast from a high-copper, high-carbon G3500
disc alloy giving them a high resistance to wear and cracking, even when
used on track or for racing. The cast iron outer ring ‘floats’ on EBC’s
patented SD-Drive technology bobbins, allowing the friction ring to
expand and contract freely by up to 3mm when subjected to the extreme
heat generated from hard braking. The bells are precision machined from
aerospace grade aluminum then hard anodised for great looks and
excellent durability. All bobbins are machined from a single piece of
stainless steel, preventing unsightly corrosion and ensuring the outer
ring continues to float freely, even after years of exposure to road
elements. EBC Racing’s 2-piece floating discs offer a low maintenance
solution that are at home on both the public roads and the race track.
Each bobbin location also features an anti-rattle spring clip, meaning
these discs are totally silent in operation.
